Matsuura MX-520![]() |
True 5-Axis Vertical Machining Center Trinity Robotics Fanuc Auto Loader Matsuura G-Tech 31i Control 12,000 RPM, 15 HP/167 Nm High-Torque CAT40 Big Plus Spindle P60 tools ATC Hi-Speed, Hi-Precision / 5-Axis Package X,Y,Z Heidenhain Scale Accuracy: ± .00004” / full travel. Positioning: ± .00004” repeatability Renishaw OMP 60 IPM Probe NC4 Laser Cooljet 1000 psi Coolant Thru Spindle with Coolant Chiller Firetrace Automatic Fire Suppression System (for Titanium parts) Ø19.685”(Ø500mm) Table Working Capacity: X 24.8”, Y 22.04”, Z 20.07” Max Work Dimension: Ø20.47”x13.77” Loading Capacity 440 lbs Mosnic Chip Conveyor |
||
Matsuura MX-520![]() |
True 5-Axis Vertical Machining Center Automated Manufacturing Kawasaki Pallet Loader Matsuura G-Tech 31i Control 12,000 RPM, 15 HP/167 Nm High-Torque CAT40 Big Plus Spindle P60 tools ATC Hi-Speed, Hi-Precision / 5-Axis Package X,Y,Z Heidenhain Scale Accuracy: ± .00004” / full travel. Positioning: ± .00004” repeatability Renishaw OMP 60 IPM Probe NC4 Laser ChipBLASTER 1000 psi Coolant Thru Spindle with Coolant Chiller Firetrace Automatic Fire Suppression System (for Titanium parts) Ø19.685”(Ø500mm) Table Working Capacity: X 24.8”, Y 22.04”, Z 20.07” Max Work Dimension: Ø20.47”x13.77” Loading Capacity 440 lbs LNS Turbo MH-250 Chip Conveyor |
||
Matsuura MX-520![]() |
True 5-Axis Vertical Machining Center Matsuura G-Tech 31i Control 12,000 RPM, 15 HP/167 Nm High-Torque CAT40 Big Plus Spindle P60 tools ATC Hi-Speed, Hi-Precision / 5-Axis Package X,Y,Z Heidenhain Scale Accuracy: ± .00004” / full travel. Positioning: ± .00004” repeatability Renishaw OMP 60 IPM Probe NC4 Laser ChipBLASTER 1000 psi Coolant Thru Spindle with Coolant Chiller Firetrace Automatic Fire Suppression System (for Titanium parts) Ø19.685”(Ø500mm) Table Working Capacity: X 24.8”, Y 22.04”, Z 20.07” Max Work Dimension: Ø20.47”x13.77” Loading Capacity 440 lbs LNS Turbo MH-250 Chip Conveyor |
||
Matsuura h.Plus-405 PC12![]() |
Full 4th-Axis Horizontal Machining Center Matsuura PC 12 Tower Pallet System Matsuura G-Tech 30i Control 12,000 RPM, 30 HP CAT40 Big Plus Spindle 240 tools ATC Hi-Speed, Hi-Precision Package X,Y,Z Heidenhain Scale Accuracy: ± .00004” / full travel. Positioning: ± .00004” repeatability Renishaw OMP 400 IPM Probe NC4 Laser Probe ATLM/BTD Cooljet 1000 psi Coolant Thru Spindle with Coolant Chiller Firetrace Automatic Fire Suppression System (for Titanium parts) 19.685”x19.685”(500mm) Pallets Working Capacity: X 25.98”, Y 29.00”, Z 25.98” Max Work Dimension: Ø27.55”x33.46” Loading Capacity 880 lbs LNS Turbo MH-250 Chip Conveyor |
||
Matsuura h.Plus-500 PC2![]() |
Full 4th-Axis Horizontal Machining Center Matsuura G-Tech 31i Control 15,000 RPM, 40 HP/ 451 Nm CAT50 Big Plus Spindle 245 tools ATC Hi-Speed, Hi-Precision Package X,Y,Z Heidenhain Scale Accuracy: ± .00004” / full travel. Positioning: ± .00004” repeatability Renishaw OMP 400 IPM Probe NC4 Laser Probe ATLM/BTD Cooljet 1000 psi Coolant Thru Spindle with Coolant Chiller Firetrace Automatic Fire Suppression System (for Titanium parts) 19.685”x19.685”(500mm) Pallets Working Capacity: X 31.49”, Y 31.49”, Z 31.49” Max Work Dimension: Ø33.46”x41.33” Loading Capacity 1650 lbs LNS Turbo MH-250 Chip Conveyor |
||
Makino a71nx![]() |
Full 4th-Axis Horizontal Machining Center Pro 6 CNC Control 10,000 RPM, 50 HP/ 512 Nm CAT50 Spindle 60 tools ATC Hi-Speed, Hi-Precision Package X,Y,Z Heidenhain Scale Accuracy: ± .00004” / full travel. Positioning: ± .00004” repeatability Renishaw OMP 400 IPM Probe NC4 Laser Probe ATLM/BTD ChipBLASTER 1000 psi Coolant Thru Spindle with Coolant Chiller Firetrace Automatic Fire Suppression System (for Titanium parts) 19.685”x19.685”(500mm) Pallets Working Capacity: X 31.49”, Y 29.53”, Z 32.67” Max Work Dimension: Ø35.43”x39.37” Loading Capacity 2200 lbs |
||
Toyoda FH550SX![]() |
Full 4th-Axis Horizontal Machining Center Fanuc Series 30i Model A CNC Control 8,000 RPM, 50 HP/ 1,000 Nm CAT50 Big Plus Spindle 121 tools ATC Hi-Speed, Hi-Precision Package X,Y,Z Heidenhain Scale Accuracy: ± .00012” / full travel. Positioning: ± .00008” repeatability Renishaw OMP 400 IPM Probe Physical Tool Setter/Probe ChipBLASTER 1000 psi Coolant Thru Spindle with Coolant Chiller Firetrace Automatic Fire Suppression System (for Titanium parts) 19.685”x19.685”(500mm) Pallets Working Capacity: X 29.52”, Y 31.50”, Z 33.46” Max Work Dimension: Ø35.43”x39.37” Loading Capacity 1760 lbs |
||
YCM NXV560A-APC![]() |
Dual Pallet Vertical Machining Center Fanuc MXP200FA CNC Control Tsudakoma 4th Axis Rotary Indexer 12,000 RPM, 15 HP CAT40 Spindle 20 tools ATC Accuracy: ± .00015” / full travel Repeatability: ± .0001” ChipBLASTER 1000 psi Coolant Thru Spindle with Coolant Chiller Working capacity: X 22.04”, Y 16.14”, Z 17.71” |
||
Turning: |
|||
Mori Seiki NL2500 / 700![]() |
CNC Precision Turning Center 26 Kw. Spindle Accuracy: ± .0001” With Live tooling and full 4th Axis 12 Station 10” Chuck 10.8” Swing Travels: X 10.2” Z 31.3” Bar capacity 3.1” |
||
Hardinge CHNC I![]() |
CNC Precision Turning Center 10 HP Spindle Accuracy: ± .0001” With Bar-Feed 16C Collet Chuck 8 Station 4” Swing Travels: X 4.5” Z 14” Bar capacity 1.625” |
||
Hardinge CHNC I![]() |
CNC Precision Turning Center 10 HP Spindle Accuracy: ± .0001” With Bar-Feed 16C Collet Chuck 8 Station 4” Swing Travels: X 4.5” Z 14” Bar capacity 1.625” |
||
Hardinge Conquest T42![]() |
CNC Precision Turning Center 10 HP Spindle Accuracy: ± .0001” With 16C Collet Chuck 12 Station 9” Swing Travels: X 5.31” Z 13.9” Bar capacity 1.625” |
||

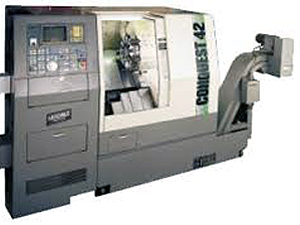

Hardinge Conquest 42![]() |
CNC Precision Turning Center 10 HP Spindle Accuracy: ± .0001” With 16C Collet Chuck 10 Station 9” Swing Travels: X 5.31” Z 13.9” Bar capacity 1.625” |
Tapping: | ||
Speedicut ST-0 |
Vertical Precision gear type machine 0 to 5/16” capacity. |
Manual Mills: |
||
Bridgeport 1 x 2pcs |
Manual Vertical Mills With Power feed 2 Axis Digital Readout 10” Tilting Rotary Table Universal Dividing Head w. Collets |
Manual Lathes: |
||
Webb 800 |
Manual Lathe 15” x 40” swing With 5C Collet Closer 2 Axis Digital Readout |
Other Equipment: |
Surface Grinder, Tool and Cutter Grinders, Vertical MIGHTY-SAW 12” x 24”, Accu-Dax super spacers, Universal dividing heads, Tilting rotary tables, Precision vices, etc. |
Inspection Equipment: |
||
Mitutoyo Height Master Gage: Series 515 |
12” with 6” riser blocks |
|
Mitutoyo Profile Projector: Type PH-500 |
Master-View 16”, 50X lens Glass Acu-rite scale .0001 Reading |
|
Mitutoyo Profile Projector: Type PH-350 |
Master-View 14”, 20X lens Glass Acu-rite scale .0001 Reading |
|
Surface Plates: |
Granite Inspection grade 36” x 48” 24" x 36" x 2pcs 12" x 18" |
|
Height Gages: |
Mitutoyo Dial Type 12” x 4pcs Mitutoyo Digital Type 18” Etalon Dial Type 24” |
|
Gage Block Sets: |
Mitutoyo 81 pcs. set Grade A Fowler 81 pcs. set Grade B |
|
Digital Bore Micrometers: |
SPI Precision up to 3” .00005" Reading |
|
Dial Bore Gages: |
Mitutoyo up to 6” x 4 sets |
|
Micrometers: |
Digital Mitutoyo 0 - 12” O/D set 0 - 4” Blade 0 - 4” Flange 0 - 6” Depth Digimatic 0 - 1” .00005” Reading |
|
Air Gage: |
Federal D-2500 |
|
Bench Micrometer: |
Sheffield 0 - 12” .00001” Reading |
|
Calipers: |
Mitutoyo 6”, 8”, 12”, 18”, 40” |
Other Inspection Equipment: |
Deltronic pin sets, Sine plates, Sine bars, V Blocks, 1 - 2 - 3 Blocks, Angle plates, Various test and travel indicators, Thread gages, Groove gages, Telescope gages,
Mueller gages, Radius gages, Microscope Baush & Lomb 40X With .8 To 4. Zoom, etc. |
General Shop Equipment: |
CP Rotary Air Compressor 30hp & 20 hp, AC Air Compressor 10 hp., gas and electric welding sets, belt and disk sanders, air and electric hand grinders, hand drills, hand tools, forklifts, etc. |
